Circulation Pump Kit – Jacuzzi J-300 Non-Convertible 240V (2002–2011)
Circulation Pump Kit – Jacuzzi J-300 Non-Convertible 240V (2002–2011)
SKU:6000-125RK
Regular price
$589.99 CAD
Regular price
Sale price
$589.99 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

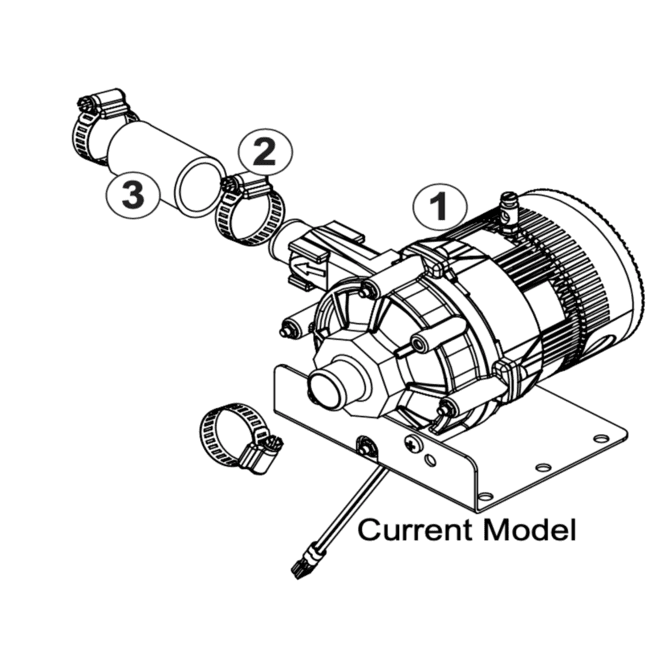

6000-125RK – OEM Jacuzzi® Circulation Pump Kit. Used in J-300 Series, 240V, 60Hz. Designed for circulation pump replacement.
Compatibility:
- Jacuzzi® J-280/J-270/J-230 Non-Convertible Spas (2002–2011) 240V 60Hz
- Jacuzzi® J-300 Non-Convertible Spas with Circulation Pump Option (2002–2011) 240V 60Hz
Special Notes: Replaces older pump models 6000-125, 6000-035, 2500-260, and 6000-125E. Includes adjustable output and power cable angle. Installation instructions provided.
Replaces: 6000-125, 6000-035, 2500-260, 6000-125E

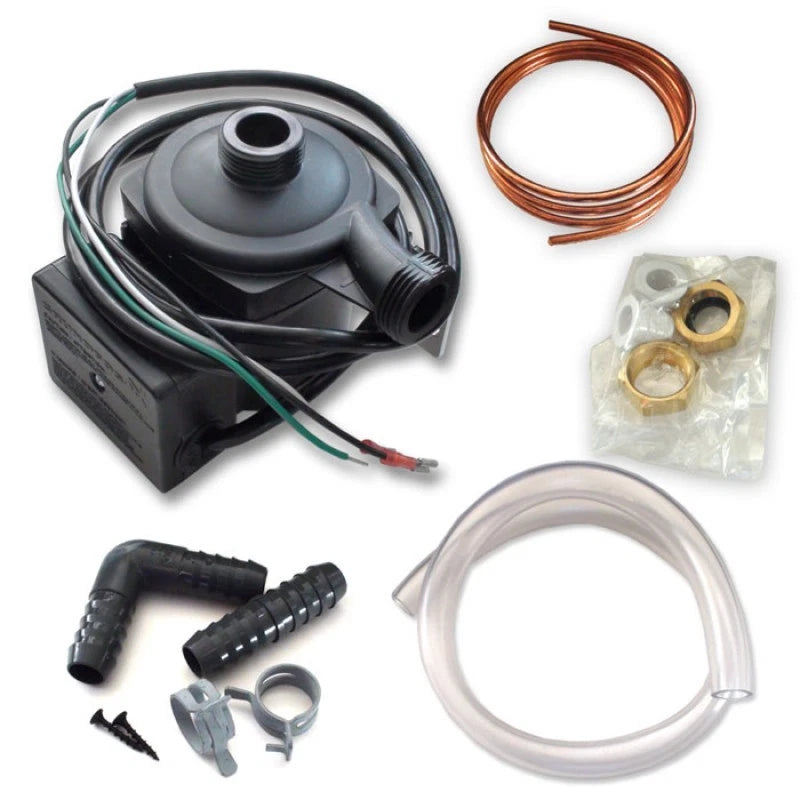

Included Kit Parts:
| Item | Part # | Description |
|---|---|---|
| A | 6570-033 | Clamp: 27mm (x2) |
| B | 6570-100 | Screw: #6 x 1" Wood (Flat Head) (x2) |
| C | 6541-075 | Adapter: 3/4" Barb x Barb (x1) |
| D | 6540-118 | Elbow: 3/4" Barb x Barb (x1) |
| E | 01150-01 | Wire: #6, Bare Copper, 36" (Bonding Wire) (x1) |
| F | 6540-744 | Hose: 3/4" Clear PVC, 36" (x1) |
| G | 6000-435 | Nut: Circ Pump 3QADAP 2014 (Included on Pump) (x2) |
| H | 6000-436 | Barb: Circ Pump 3QADAP 2014 (Included on Pump) (x2) |
| I | 6000-437 | Gasket: Circ Pump 3QADAP 2014 (Included on Pump) (x2) |
Note: These kits include adjustable output and cable angle. Installation location may differ from OEM pump.
