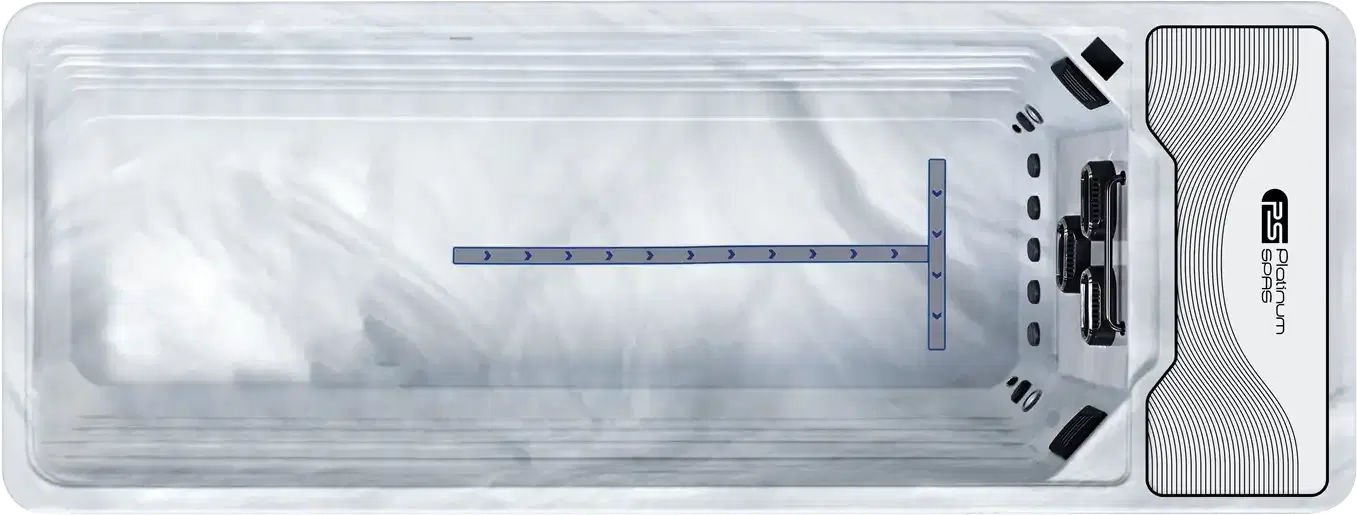

The Hades is a fully in-ground mini pool built for one thing: a pure swim experience. The completely open swim lane maximizes usable water area, giving you a clean, uninterrupted environment for swimming, exercise, and low-impact training. No seats, no steps — just space to move.
Powered by a 3-pump river jet system, Hades creates a smooth, adjustable current ideal for light swimming and resistance movement. Every detail is focused on simplicity and function — no clutter, no compromise, just a refined, purpose-built swim space.
Installed fully in-ground, Hades sits flush within any Metro Vancouver outdoor environment, delivering a seamless, modern finish. A top-access service hatch provides direct access to pumps, filtration, and heating systems, simplifying installation and maintenance. Built with premium materials and powered by a Balboa control system with SpaTouch 2T controls.
Powered by a 3-pump jet system
Hades creates a smooth, adjustable current ideal for light swimming and resistance movement.
Every detail is focused on simplicity and function. No clutter, no compromise — just a refined, purpose-built swim space.

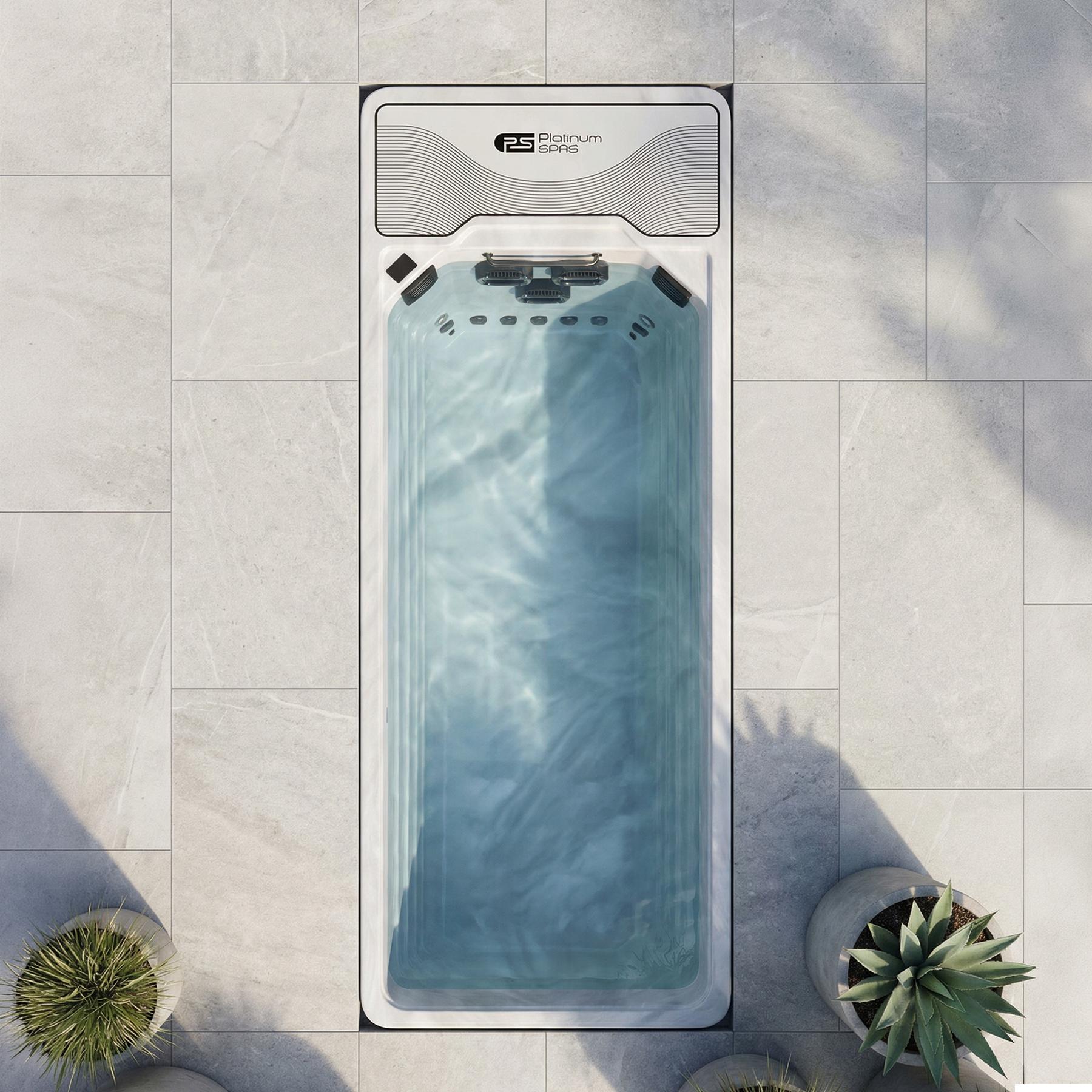

Installed fully in-ground, Hades sits flush within your outdoor environment, delivering a seamless, modern finish.
Engineered by our expert team in the UK, Hades is designed for ease. A top-access service hatch provides direct access to pumps, filtration, and heating systems, simplifying installation and maintenance.
Built with premium materials and powered by a Balboa control system with SpaTouch controls, Hades delivers durability and performance you can rely on.
A swim space, stripped back to what matters.
Technical Specification
| Dimensions |
600 x 225 x 150 cm (236.2 x 88.6 x 59 in) |
| Water Capacity |
~10,997 L (2,905 gal) |
| Dry Weight |
1,560 kg (3,439 lbs) |
| Wet Weight |
12,560 kg (27,690 lbs) |
| Heater |
5.5 kW |
| Circulation Pump |
1 x 0.35 HP |
| Swim Pumps |
3 x 6 BHP (3 HP cont.) |
| Power Supply |
50A / 240V |
| Swim System |
River Jet System |
| Filters |
SS01 x 2 |
| Controls |
SpaTouch 2T |
Download Spec Sheet (PDF)
Specifications and dimensions listed are supplied by the manufacturer and should be confirmed with your Crystalview dealer prior to purchase.
