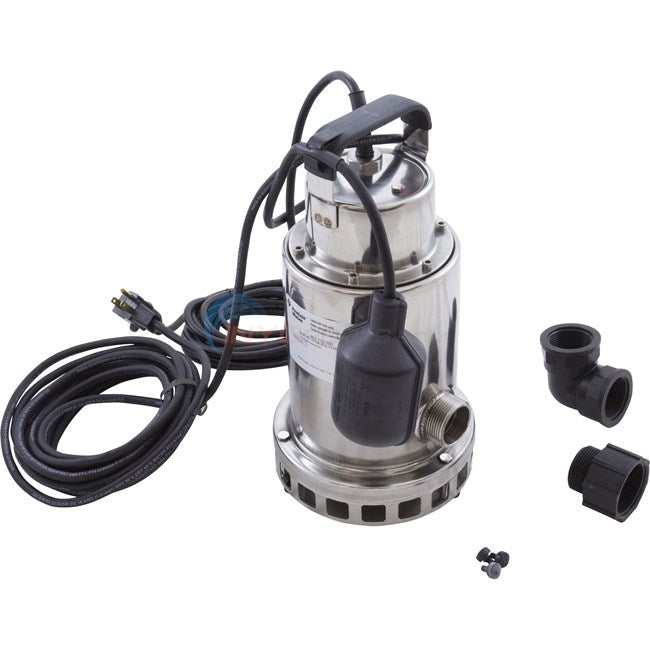

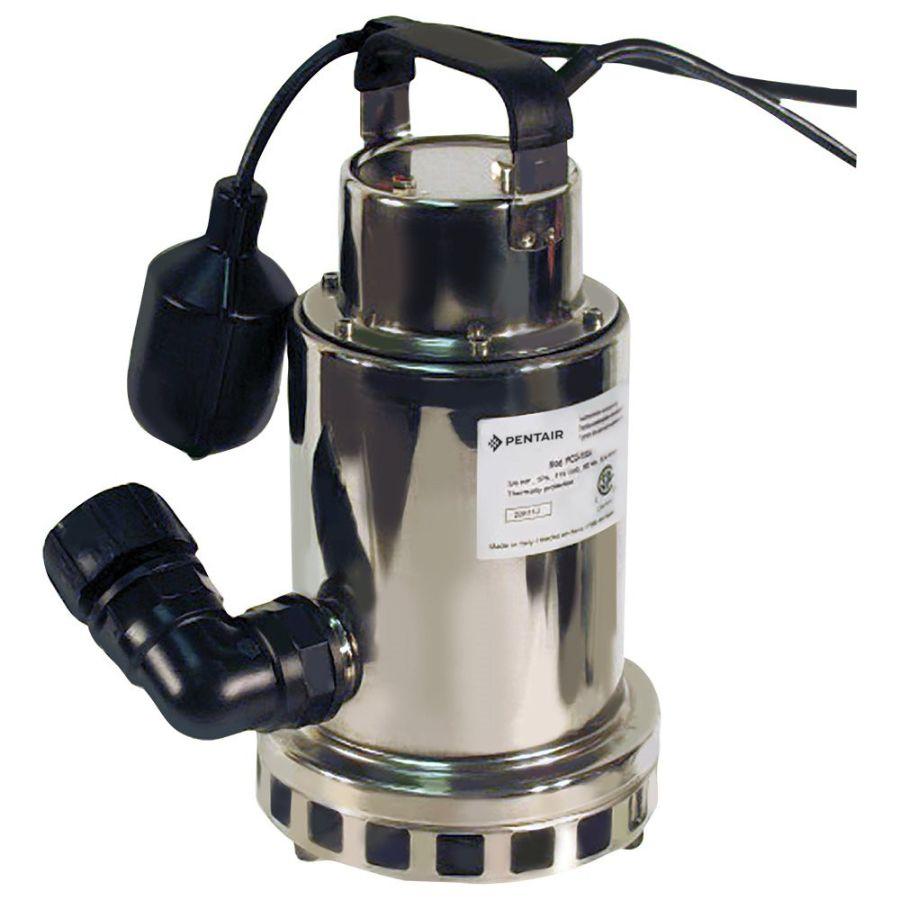

Pentair Sta-Rite Submersible Pool Service Pump (PCD-1000)

The Pentair Sta-Rite PCD-1000 is a professional-grade submersible pump designed for draining pools, spas, and general utility applications. Built with a full stainless steel casing, impeller, suction strainer, and shaft for outstanding corrosion resistance and long service life.

Rent Me

Key Features

• 3/4 HP, 115V, 60Hz single-phase permanent split capacitor motor
• Stainless steel casing, impeller, suction strainer, and shaft
• Flow rate: 45.5 GPM
• Pumps water down to 1-3/8" depth
• Passes debris and stones up to 3/4"
• 1-1/4" and 1-1/2" discharge connections — adapters included
• Optional external float switch included (stops pump at low water level; remove for continuous operation)
• 15-foot, 18/3 grounding-type power cord
• Convenient top-mounted carry handle
• Rubber feet to protect pool and spa surfaces
• Automatic thermal overload protection
• Permanently lubricated ball bearings
• Water temperature range: 0°C–54°C (32°F–130°F)

Specifications

• Model: PCD-1000
• Horsepower: 3/4 HP
• Voltage: 115V / 60Hz
• Amperage: 6.4A
• Flow Rate: 45.5 GPM
• Discharge: 1-1/4" and 1-1/2" (adapters included)
• Cord Length: 15 feet
• Construction: Stainless steel body with brass base
